Hardware 3 · Component explorer

Tesla AI3/HW3 Computer Visualizer

HW3 Board Information

Tesla FSD Hardware Generation: HW3
PCB identification: FSD1.2-C2
Printed board revision: REV-01

Board Identification / Hardware Revision

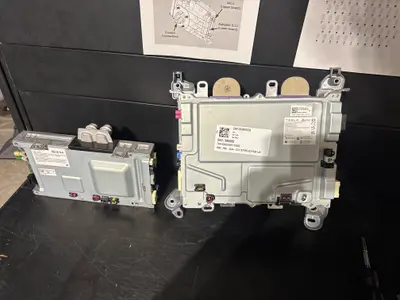

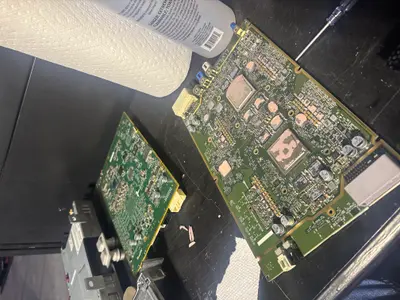

Tesla Hardware 3 FSD Computer

This is a Tesla Hardware 3 (HW3) Full Self-Driving computer board. Tesla introduced HW3 in 2019 with two custom-designed FSD processors for redundant autonomous driving computation.

The information below identifies the specific PCB pictured in this visualization. Other HW3 boards may have different PCB revisions, manufacturing dates, component variants, or hardware configurations.

Board identification
Board details	Specification
Designer	Tesla
Hardware generation	HW3 / FSD Computer 3.0
Board identification	FSD1.2-C2
Tesla PCB part number	1093588-00-C
PCB revision marking	REV-01
Copyright marking	2020
Board type	Multilayer automotive PCB

Hover to lift. Click to inspect.

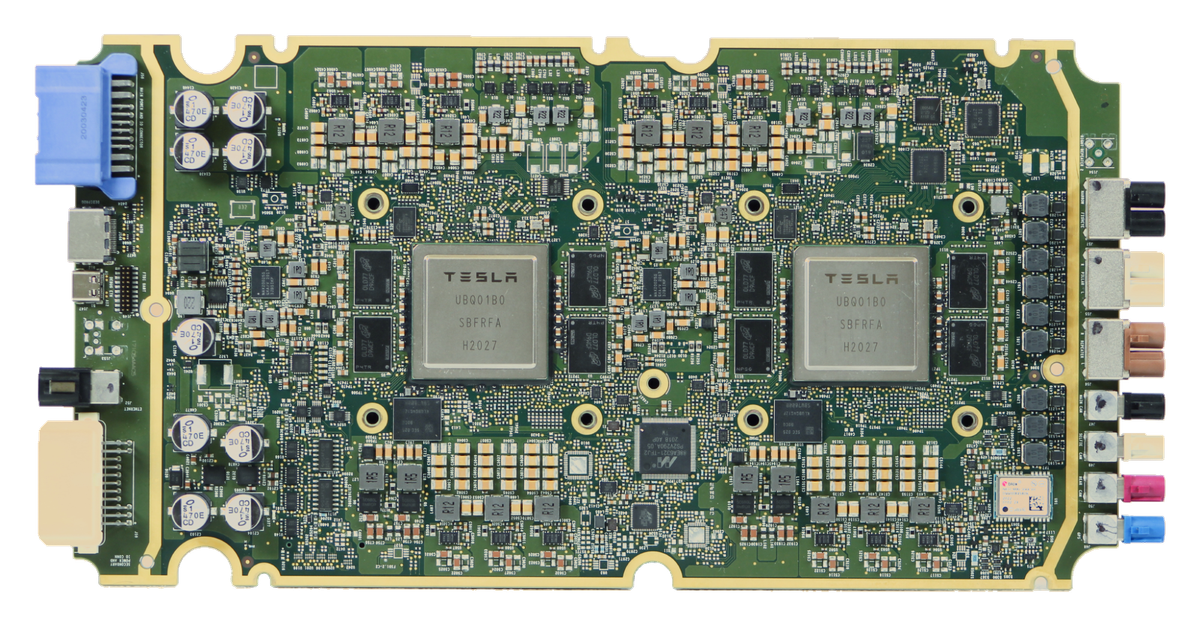

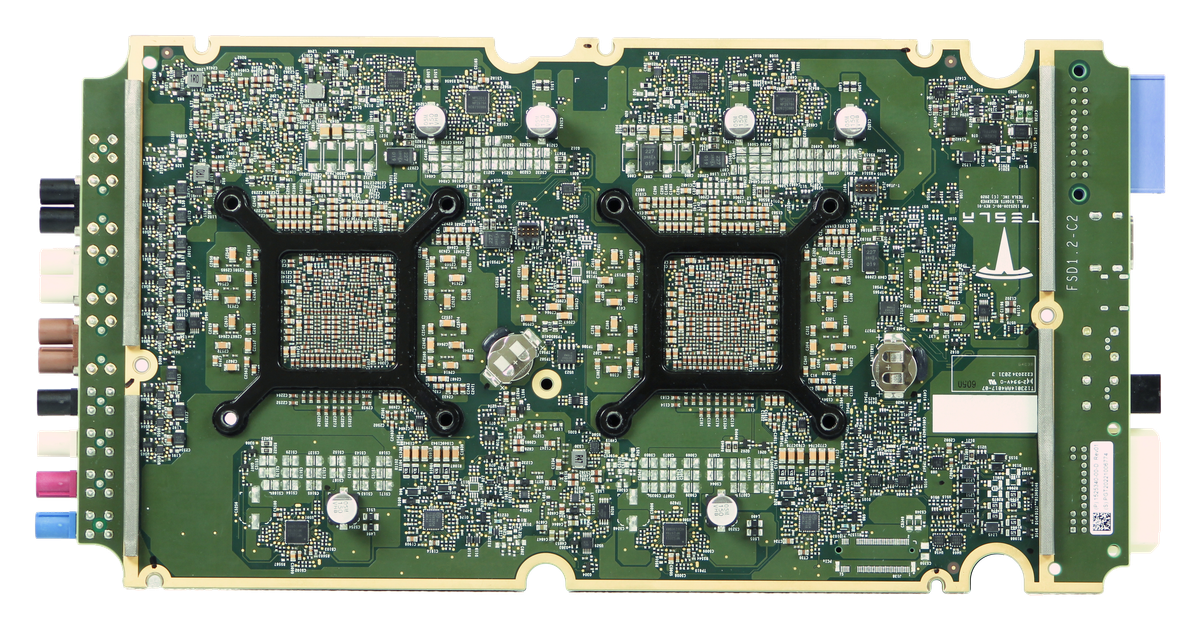

Tesla Hardware 3 FSD circuit board with two AI processors, memory packages, storage, and connectors along both sides.
